PIKO G Scale ~ Radio Control (R/C) Loco Receiver ~ 3 Amp with Pocket Remote ~ 35040

PIKO G Scale ~ Radio Control (R/C) Loco Receiver, 3Amp with Pocket Remote ~ 35040

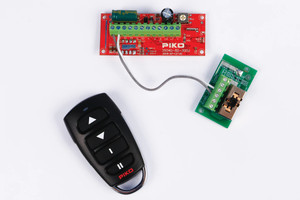

35040 Radio Control (R/C) Loco Receiver, 3Amp with Pocket Remote

The 35040 R/C Loco Receiver offers all the operational features of
the R/C Analog Throttle in the 35028 R/C Analog Power Set, with extra benefits:

• The R/C Loco Receiver features a compact design which can fit into many G-Scale locomotives.
• The Receiver also includes two relay-type function contacts, for activation of functions such as horn/whistle and bell on a separate sound unit.
• 3.5A Max Continuous Power
• The Receiver is designed to be battery-powered (batteries not included).
• Receiver can be powered by a fixed, well-filtered DC supply of 7 to 22 volts, such as a DC voltage on the track.
• Receiver has simple, user-friendly connections for motor/lighting power and the two function outputs.
• Up to 30m / 80′ R/C range, indoors or outdoors. (CR2025 battery included.)

Convenient “In-Loco” R/C Control of Locomotives is now here from PIKO, without the need for a DCC system!

With the 35040 R/C Loco Receiver and batteries installed in your G-Scale loco, the included pocket remote allows you to operate your train virtually anywhere – over dirty track, non-powered track, even across the floor!

35040 Instruction Manual

35041 Instruction Manual (Remote specific instructions)

* This item is not recommended for use with decoder-equipped locos. If you wish to use this device and locos with decoders, we suggest a device to convert PWM to DC similar to the inexpensive device from G-Scale Graphics or other companies.
