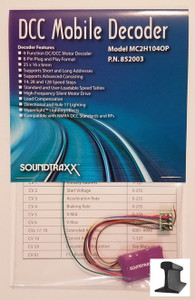

Soundtraxx DCC Motor Only Decoder ~ MC2H104OP ~ 8 Pin With Harness ~ 852003

$29.56

18 in stock

SKU: ST852003 Categories: ,

Description

SoundTraxx DCC Motor Only Decoder ~ MC2H104OP ~ 8 Pin With Harness ~ 852003

HO-scale, 4-function decoder that measures 25 x 16 x 6mm with a 9-pin JST to 8-pin NMRA wiring harness that can be used in many DCC-ready models that have an NMRA 8-pin socket. This decoder will operate in both DC and DCC.

Spefications:

Dimensions: 25 x 16 x 6mm
Max. Motor Stall Current: 1A
Max. Function Current: 100mA (each output)
Function Outputs: 4
Supports Short & Long Addresses
Standard & User-Loadable Speed Tables
14, 28 & 128 Speed Steps
Load Compensation
Directional & Rule 17 Lighting
DCC Track Voltage: 7.5V – 22V
Hyperlight Lighting Effects
HIgh Frequency Silent Motor Drive
Operates on DC and DCC Layouts



More Info:

Equip your fleet with DCC without breaking the bank! SoundTraxx DCC Mobile Decoders provide high-performance operation and 14 Hyperlight lighting effects in a variety of easy-to-use formats for models that do not exceed a 1-amp stall current. Since they utilize our Hyperdrive technology, these mobile decoders are easy to speed-match with Tsunami Digital Sound Decoders.

The 2-function MC1 Series DCC Mobile Decoders fit in many small N and Z-scale models. The dual-mode MC2 Series DCC Mobile Decoders have four lighting outputs and support CVs 5 and 6 to allow for optional three-point speed curves.

In addition to offering a selection of 14 Hyperlight lighting effects, options include a choice of directional or Rule 17 lighting control, grade-crossing timers, adjustable flash rate, and an LED brightness correction control mode.

The SoundTraxx Hyperdrive Motion Control System, which is found in all Tsunami Digital Sound Decoders, incorporates advanced motor control features such as high-resolution speed steps and high-frequency PWM drive (pulse-width-modulation) to help eliminate motor ‘hum’. Hyperdrive also includes such features as programmable speed curves and adjustable momentum.

All formats are compatible with NMRA DCC Standards and Recommended Practices, and are manufactured in Durango, Colorado.
