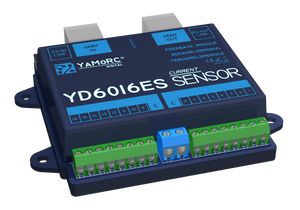

YaMoRC ~ s88N 16 Channel Feedback Module ~ Current Sensing Inputs ~ YD6016ES-CS

$81.50

3 in stock

SKU: YD6016ES-CS Categories: ,

Description

YaMoRC ~ Classic s88N Feedback Module with Current Sensing Inputs ~ YD6016ES-CS



Our classic s88N feedback module with current sensing inputs



It presents:

  • 16 current-sensing detectors, arranged in two independent blocks of 8, each with their own Common
  • 2 Amp continuous current per detector, 8 Amps in total combined over the 16 detectors on the whole module
  • 5 Amp short duration overload (100ms) capable per detector.
  • 1mA current sensitivity
  • Capacitive input filter on every input, to suppress noise on long cables and track-sections
  • Configurable on- and off-delay settings for each input for optimal de-bouncing in case of non-optimal wheel-track contact
  • ES-OUT-Link for direct connection to an ES-Link-master
  • ES-IN-Link connection to other ES-Link-enabled modules for module-configuration
  • Standard s88N connections over RJ45 connectors and ethernet patch cables
  • Firmware updatable and settings configurable over ES-Link
  • Power supply directly from ES-Link or s88 bus

* Coupons not applicable on this item
