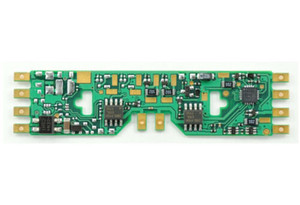

TCS 1000 ~ A4X ~ HO Drop In PNP ~ DCC Motor Decoder For Atlas, Athearn, Kato, Etc



The A4X is four function HO-scale “drop-in” style mobile decoder for Atlas, Athearn, Kato, etc. locomotives.



Examples include the following:

Athearn: F59PHI, F3

Atlas: RS-1/RS-3/RS-11, C424, GP7

Kato: GP35



Back EMF Load Compensation:

Provides superior slow speed control and high performance under load.



Quiet Drive:

Super-quiet motor control for “buzz” free motor performance.



DC Mode:

Decoder will automatically detect DC power. You can also configure how your lighting effects function on DC.



RailCom®:

This feature allows the decoder to talk to the command station. RailCom supports expansion for new features.



Variable Momentum:

Allows you to make custom acceleration and deceleration curves.



LED Support:

This product does not require external resistors when connecting LED’s.



Incandescent Bulb Support:

This decoder can be used with 12 Volt bulbs.



Function Remapping:

Buttons 0 through 12 may be used to control the lighting functions of this decoder.



Programmable Lighting Effects:

Choose from 20 separate user-programmable lighting effects!



Dimmable Brightness:

Configure multiple different brightness levels for your LED’s or incandescent bulbs.



Decoder Lock:

Feature which prevents accidental/unwanted programming while activated.



Airwire™ Compatible:

Fully compatible with Airwire™ operation.



User-Loadable Speed Tables:

Configure custom speed curves and set speed limits.





Interface Type: Drop-In

Dimensions (L x W x H): 2.85″ x 0.682″ x 0.138″ or 72.39mm x 17.32mm x 3.51mm

Scale: HO Scale

Continuous/Peak: 1.0/2.0 Amp

Total Functions: 4

Function Rating: 100 mA

12V Outputs: 4

LED Outputs: 4
